GD-18S High precision centerless grinding machine — Centerless grinding machine

GD-18S High precision centerless grinding machine

Category Centerless grinding machine

Contact

Product details

High-precision centerless grinding machine  GD-18S direct supply Taiwan original Jianchang spindle, runout within 0.001mm, double V-shaped guide rail structure, lubrication and no wear, two sets of upper and lower feed structures, can easily grind even fine workpieces. The infinitely variable speed guide wheel structure can adjust the appropriate feeding speed according to the diameter and length of the workpiece to ensure the roughness of the workpiece.

According to the requirements of the workpiece, it can realize rough grinding, semi-finish grinding, fine grinding and other multi-machine connection methods, complete the grinding of the workpiece at one time, and adopt multiple automatic feeding and receiving such as through-type grinding, vibrating disc, and feeding conveyor belt. Way

MODELGD-18S
Processing diameterStandard workbench￠0.5~60mm
Special workbench￠40~120mm
Grinding wheel spindleGrinding wheel size￠455x205x￠228.6mm
Motor power15HP
Grinding wheel speed1520R.P.M
Regulating wheel axisAdjust wheel size￠255x205x￠111.2
Regulating wheel speed10~250R.P.M
Motor power3.0kw (servo)
Inclination angle of the regulating wheel+5°~﹣3°
Rotation angle of the regulating wheel+5°~﹣5°
HandwheelLower slide rail feed handwheel9.0/rpm 0.10/scale
Lower slide rail fine-tuning handwheel0.2/rpm 0.001/scale
Upper slide rail feed handwheel3.5/rpm 0.05/scale
Upper slide rail fine-tuning handwheel0.1/rpm 0.001/scale
Dressing axis feed handwheel2.0/rpm 0.01/scale
Drive motorOil pump drive motor1HP
Cooling pump drive motor1/4HP
Machine dimensions2350 x1960 x1550mm
Packaging size2900 x2400 x1850mm
Mechanical weight2850Kgs
Packaging weight3005Kgs

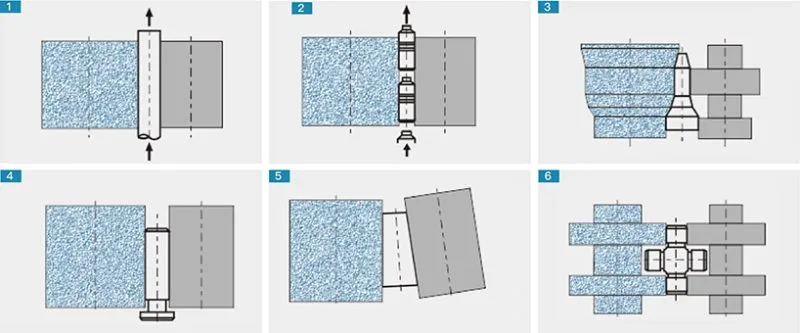

Workpiece grinding method reference

1.Round rod through grinding   2.Short round workpiece by grinding      3.Period of form grinding
4.Attached to the head stop abrasive   5.Taper stop grinding       6.Cross workpiece grinding

GD-18S Centerless grinder product accessories：

GD-18S Centerless grinder product accessories GD-18S Centerless grinder product accessories GD-18S Centerless grinder product accessories GD-18S Centerless grinder product accessories

GD-18S Centerless grinder product accessories

  1. grinding wheel
  2. Grinding wheel flange
  3. Grinding wheel removal tube
  4. Grinding wheel dressing diamond pen
  5. guide wheel
  6. Guide wheel flange
  7. Guide wheel dressing diamond pen
  8. Machine tool foot pads
  9. Pass-through grinding tool holder
  10. Pass-through grinding blade
  11. Press grinding tool holder
  12. Pressure grinding blade
  13. Tool boxes and accessories
  14. Magnet filter
  15. front water deflector
  16. Rear water deflector
  17. Fuel tank
  18. water tank
