High precision centerless grinder GD-12S
The main shaft is a three-support structure of bearing pads, and the original Jianchang main shaft in Taiwan has a runout of less than 0.002mm. The infinitely variable speed guide wheel structure can adjust the appropriate feeding speed according to the diameter and length of the workpiece to ensure the roughness of the workpiece.
| MODEL | GD-12S | |
| Processing diameter | Standard workbench | ￠0.5~40mm |
| Special workbench | ￠30~50mm | |
| Grinding wheel spindle | Grinding wheel size | ￠305*150*￠120mm |
| Motor power | 7.5HP | |
| Grinding wheel speed | 1950R.P.M | |
| Regulating wheel axis | Adjust wheel size | ￠205x150x￠90 |
| Regulating wheel speed | 10~300R.P.M | |
| Motor power | 2.0kw (servo) | |
| Inclination angle of the regulating wheel | +5°~﹣3° | |
| Rotation angle of the regulating wheel | +5°~﹣5° | |
| Handwheel | Lower slide rail feed handwheel | 7.0/rpm 0.10/scale |
| Lower slide rail fine-tuning handwheel | 0.2/rpm 0.001/scale | |
| Upper slide rail feed handwheel | 3.5/rpm 0.02/scale | |
| Upper slide rail fine-tuning handwheel | 0.1/rpm 0.001/scale | |
| Dressing axis feed handwheel | 1.5/rpm 0.01/scale | |
| Drive motor | Oil pump drive motor | 1HP |
| Cooling pump drive motor | 1/8HP | |
| Machine dimensions | 1800 x1400 x1450mm | |
| Packaging size | 2350 x1650 x1770mm | |
| Mechanical weight | 1700Kgs | |
| Packaging weight | 1850Kgs | |

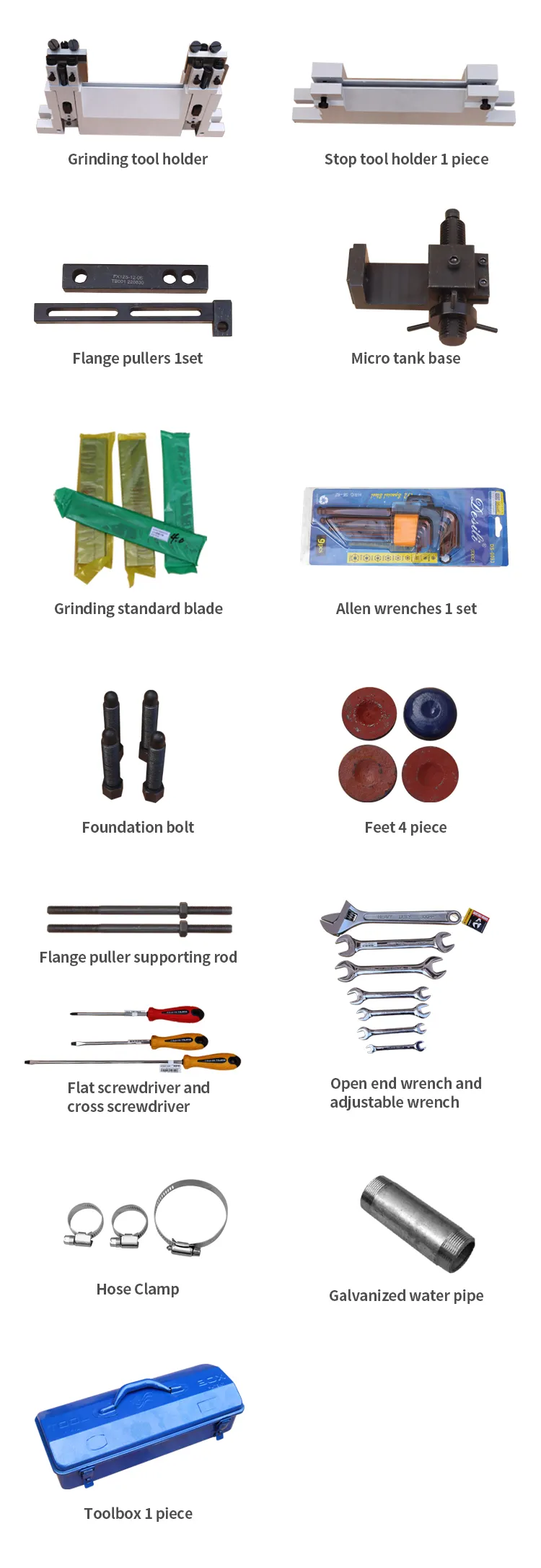

Standard Accessories
Why choose us
· The factory area exceeds 6000 square meters.
· The product models are complete, with a wide range of functions.
· More than 15 years of experience in design, research and development, and production of grinding machines.
· ISO9001:2015 quality management system certification.
· It has an efficient after-sales service team.
Workshop
