Tool Grinder Attachments

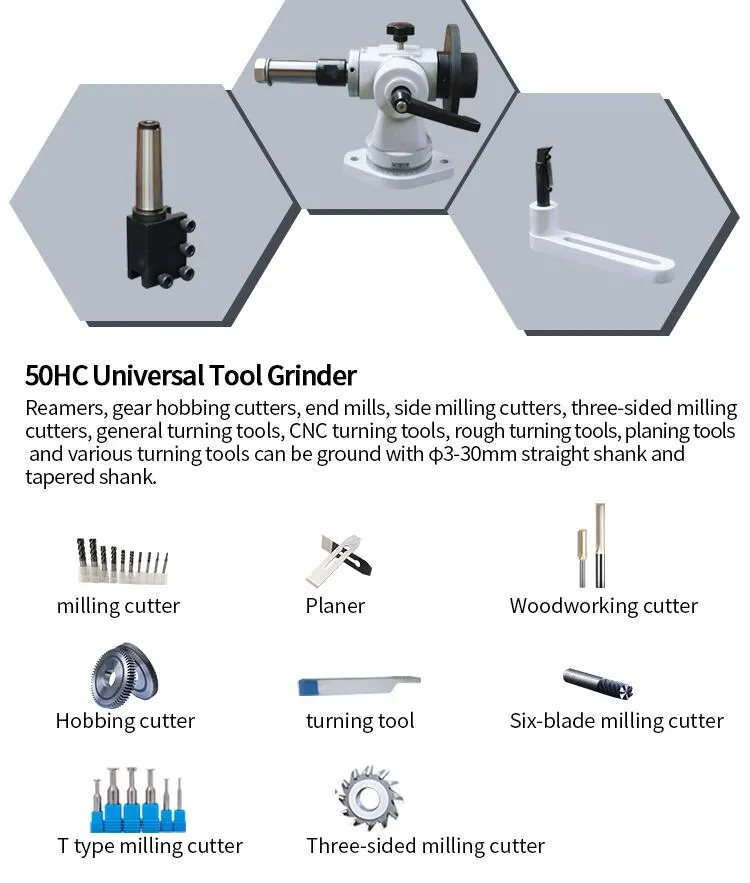

50HC Universal grinding attachment

Used for straight shank and Morse 4# taper shank reamers, hobs, end mill cutters, lathe tools, planer tools, etc (ER handle can be optional).

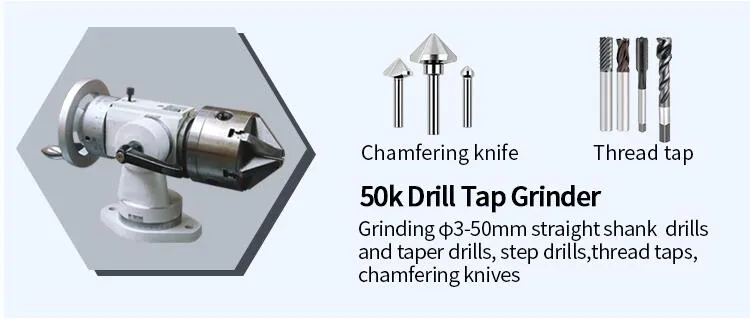

50K Drill bit, screw tap grinding attachment

Used for straight shank and Morse 5# taper shank drill bits, step drill bits, thread screw taps, rose reamers.

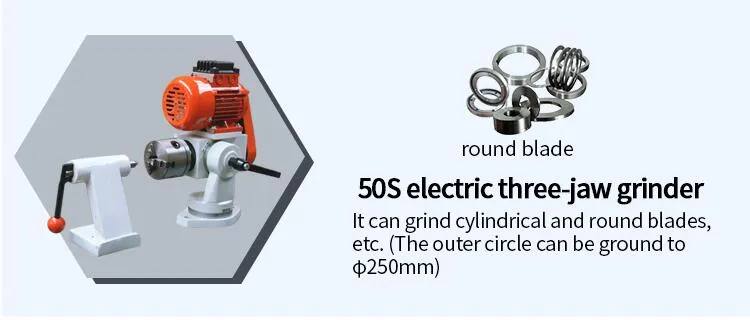

50S Electric three-jaw grinding attachment

Used as a holder for round type workpieces. Can grind outer and inner diameter.

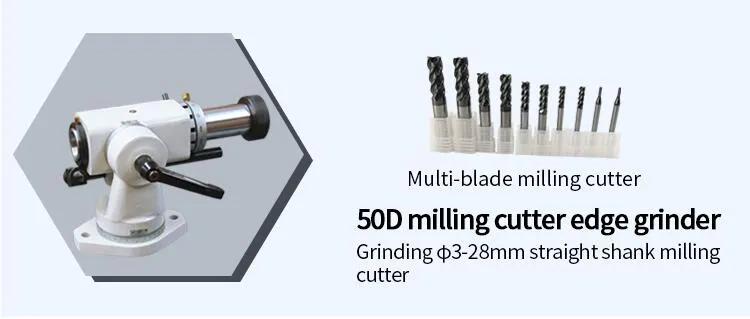

50D End mill grinding attachment

Used for grinding Ф3~28mm straight shank and Morse 4# taper shank end mill cutters. (For grinding taper shank end mills need to purchase taper shank conversion sleeve).

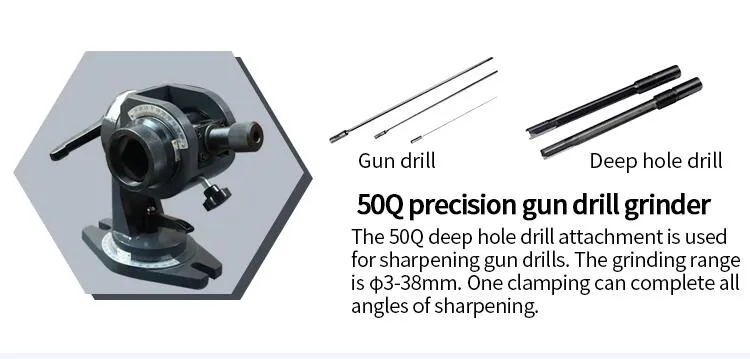

50Q Gun drill grinding attachment

Used for grinding gun drills with 200~3000mm (70-3000mm optional) blade length, Ф3~38mm (Ф2~42mm optional) grinding diameter. Adopts six-jaw precision chuck, that ensure the center point precision. Six-sided gun drill can be grinded in one clamping, after grinding all six-sided drill lip angles will be completed. Regardless of outer diameter size, the center point accuracy can be guaranteed.

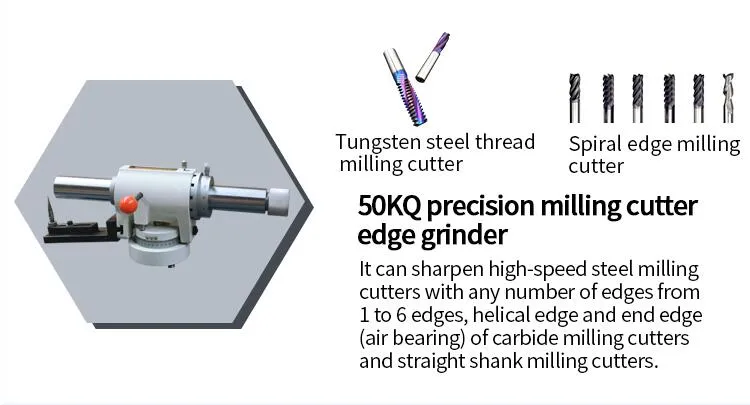

50KQ Air bearing grinding attachment

Used for grinding HSS end mills, spiral, end edge of carbide end mills with straight shank and 2, 3, 4, 5, 6 ect, any number of blades. (For grinding taper shank milling cutters need to purchase taper shank conversion sleeve).

50RFillet Device For Ball Milling

Electric punch former

Used for grinding inner and outer diameter of round high precision workpieces, accuracy (0.002~0.005). ER chuck type can be optional.
