GD-66 End Mill Sharpening Machine

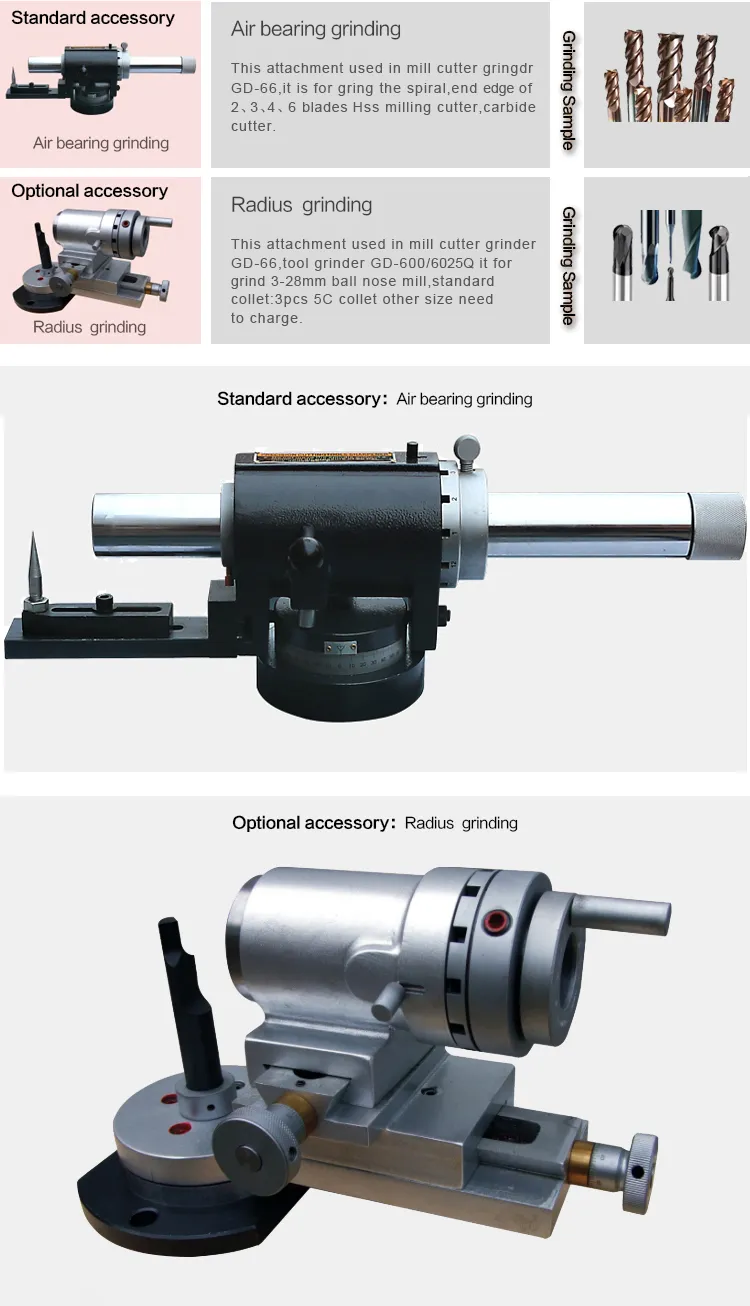

GD-66 End Mill Sharpening Machine Having opening type structure, adding operation space, enlarging grinding range, this sharpener can grind relief, cutting edge of miller, drill, reamer, also can grind ball end mill and tap guide cutter ede by changing different attchement. This main part of sharpener is made of excellent Aluminum, it has many features, such as light weight, resist rot, etc. It takes up advanced international technique of air floating, the spindle rotate flexibly after being pressed, to minimize friction.

Technical Parameters

model	GD-66 End Mill Sharpening Machine
Application	2,3,4,6flutes HSSend mill, carbide end mill
Grinding diameter	3-28mm
Grindable milling cutter side edge length	175mm
Gring Milling cutter length	200mm
Table cross travel (X axis )	150mm
Swing dia.of workpiece:245mm	245mm
Table longitudinal travel (Y axis)	50mm
Max travel of the workpiece table	50mm
Table in-feed graduation	0.02mm
Adiustment for wheel head	+35°—-5°
Air bearing swivel	360°
Dia. Of grinding wheel	125*52*32mm
Air consumption	more than 0.63MP
Motor	380V/0.55KW/50Hz/2800rmp
SIZE	72*67*68CM
Gross weight	141KG (Contains 50KQ)
