QD-X20A Automatic Tool Grinder

Product details

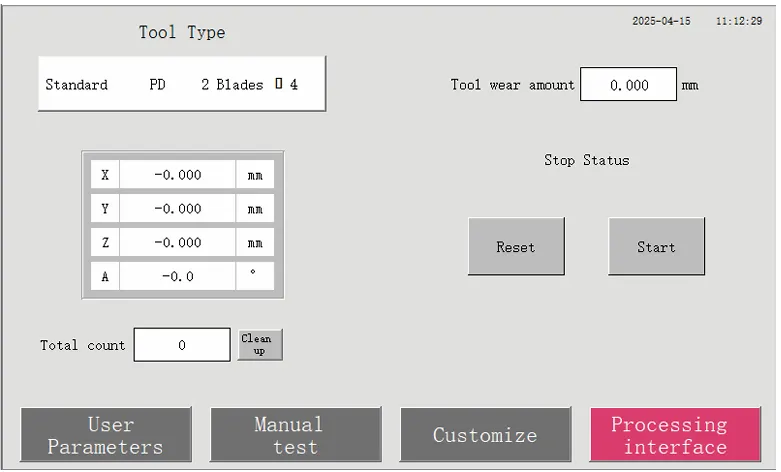

This product is an automatic CNC tool grinder powered by a servo motor, suitablefor regrinding tungsten steel, hard alloy, and high-speed steel tools.

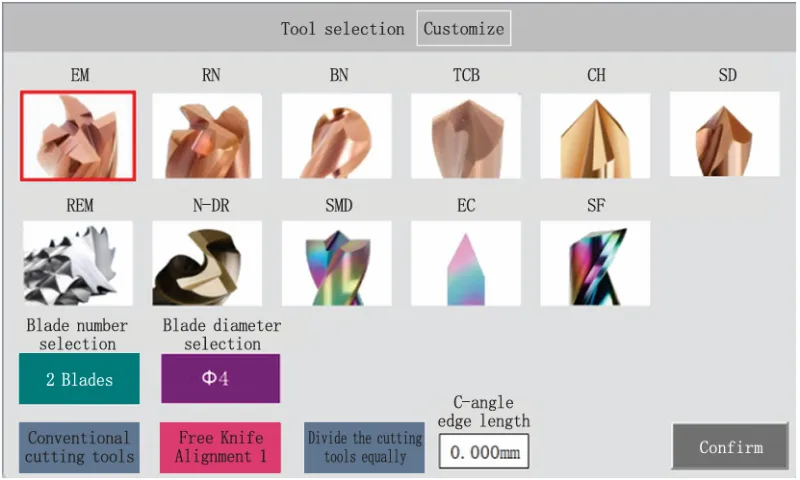

Grinding tool models: flat milling cutter, ball milling cutter, round nose milling cutter,drill bit, chamfering tool, centering drill, corn milling cutter, non stick drill bit, thinplate drill bit, carving tool, single edge milling cutter.

Model	QD-X20A
Grinding range	4mm-20mm
Grinding tool type	End Mills : 2, 3, 4, 5, and 6 flutes
	Bull-nose End Mills/ Ball-nose End Mills:2, 4 flutes
	Carbide Drill Bit: 2-Flute
	Corn-tooth end mill: 2-flute
	Chamfering cutter: 2-flute, 3-flute

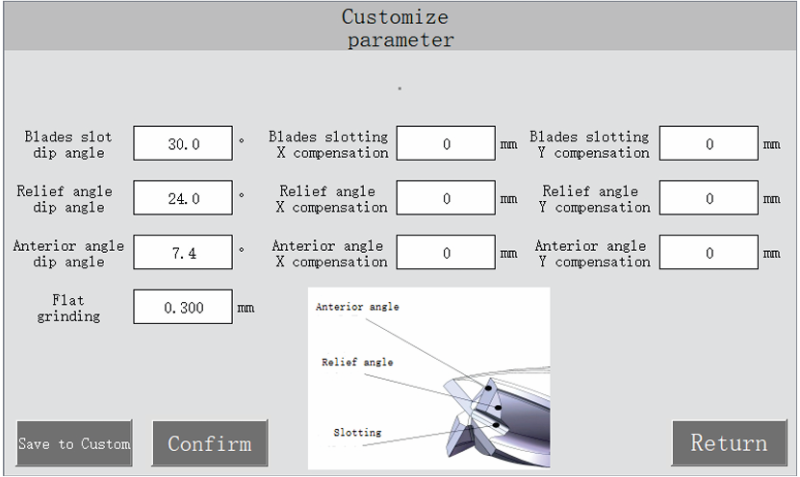

Milling cutter sharpening angles	Rake angle 7°, clearance angle 24°, slot angle 30°
Power	1500W
Speed	3000rpm

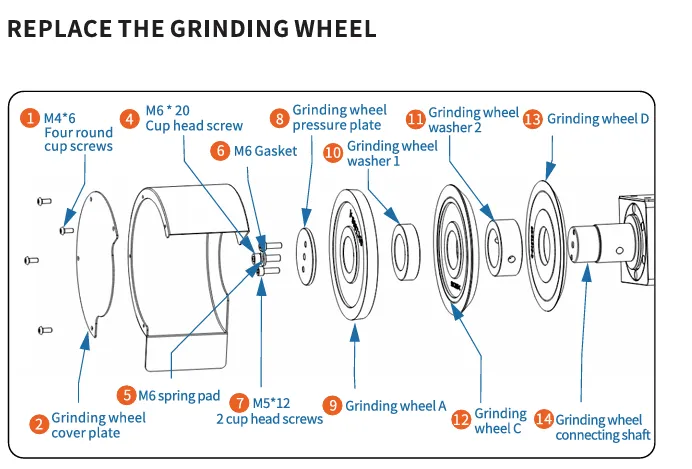

grinding wheel size	SDC400#A: @124×11 / SDC180#C:0124x10SDC180#D:0124×5.50
Products size	862mm788mm1435mm
Products weight	180kg

FLAT MILLING BLADE DIAMETER SPECIFICATIONS(2 blades,3 blades,4 blades, 5 blades,6blades)

φ4	φ5	φ6	φ7	φ8	φ9
φ10	φ12	φ14	φ16	φ18	φ20

SPECIFICATION FOR CUTTING EDGE DIAMETER OF ROUND NOSE MILLING CUTTER

Ball-nose End Mills：2, 4flutes
刃径	R	R	R	R	R	R	R	R	R
φ4	0.5	1
φ5	0.5	1
φ6	0.5	1	1.5	2
φ8	0.5	1	1.5	2	2.5	3
φ10	0.5	1	1.5	2	2.5	3
φ12	0.5	1	1.5	2	2.5	3	4
φ14	0.5	1	1.5	2	2.5	3	4
φ16	0.5	1	1.5	2	2.5	3	4	5
φ18	0.5	1	1.5	2	2.5	3	4	5	6
φ20	0.5	1	1.5	2	2.5	3	4	5	6
