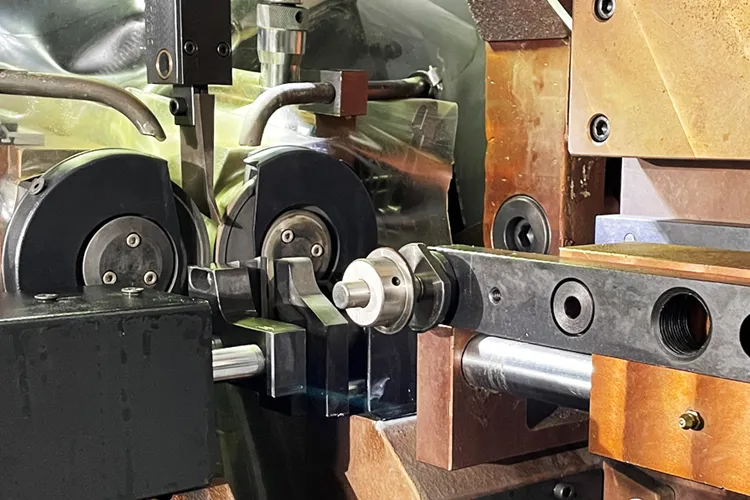

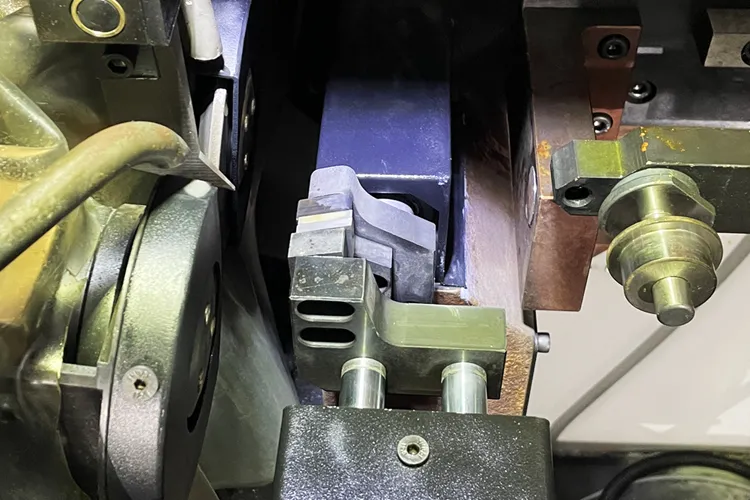

GD-650E Double Side Automatic Circular Saw Blade grinding Machine
Category Other grinder machine
ContactProduct details
GD-650E Double side automatic saw blade grinding machine The maximum processing line can reach 800mm;Full servo tool setting and feeding；Fine grinding operation thickness tolerance 0.01mm
| Model | GD-650E |
| Circle saw outside dia | Ф120～650mm |
| Bore dia | Ф12～105mm |
| Max thickness | 12mm |
| Tooth pitch | 7～60mm |
| Hook angle From | -15° to 30° |
| Radial angle From | -4° to 6° |
| Tangential angle From | 000 to +6 +5 +4 |
| Maximum grinding stroke | 15mm |
| Grinding speed | 0.5～6mm/s |
| Grinding wheels outside dia | Ф80; Ф100; Ф125mm |
| Grinding wheel linear speed | 23m/s;28m/s;35m/s |
| Hydraulic dial tooth | |
| Water pump flow | 24L/min |
| Content of coolant pump | 90L |
| Voltage three-phase | 380V |
| Total power | 3.8KW |
| Equipment size L*W*H | 1850*1650*1950mm |
| Packing size L*W*H | 2030*1840*2220mm |
| Total weight About | 1350kg |
Why choose us
· The factory area exceeds 6000 square meters.
· The product models are complete, with a wide range of functions.
· More than 15 years of experience in design, research and development, and production of grinding machines.
· ISO9001:2015 quality management system certification.
· It has an efficient after-sales service team.
Workshop
