Product details

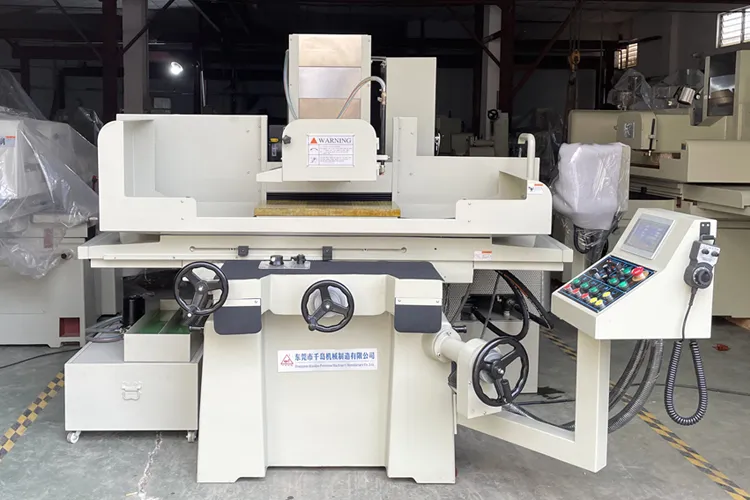

Surface Grinder Machine （GD-3060 AHD）Feature.

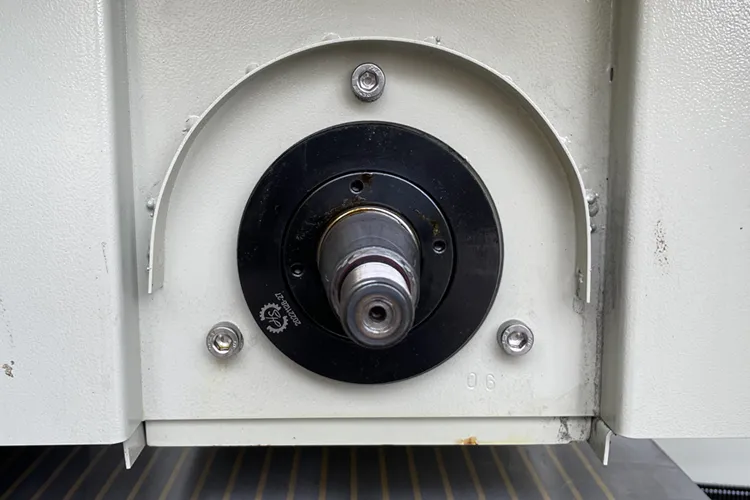

1.Adopt the exceeding precise class7(P4 level) ball bearing for spindle.
2.The transmission of table can be hydraulic and manual.
3.Working from left to right and front to left are automatic
4.The machine can grind the materials of Iron, steel, ceramics, a variety of mixed metal.
5.If the material is very hard, it will be changing the high hardness of the wheel, such as diamond grinding wheel.
6.If the material is not sensitive to magnetic, then need to choose the fixture
| parameter | unit | 3060AHD |
| Table size（x*y） | mm | 600*300 |
| X axis max travel | mm | 720 |
| Y axis max travel | mm | 360 |
| The max center of wheel to table | mm | 520 |
| The max load | kg | 600 |
| Table T-slot | mm×N | 14*1 |

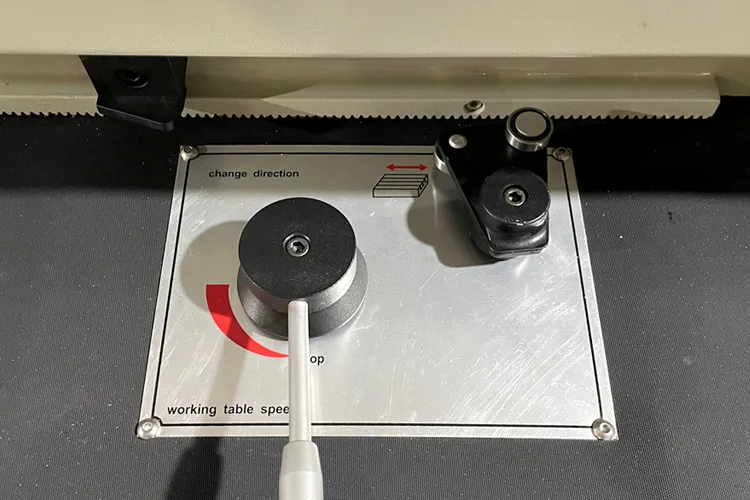

| table speed | m/min | 5~25 |

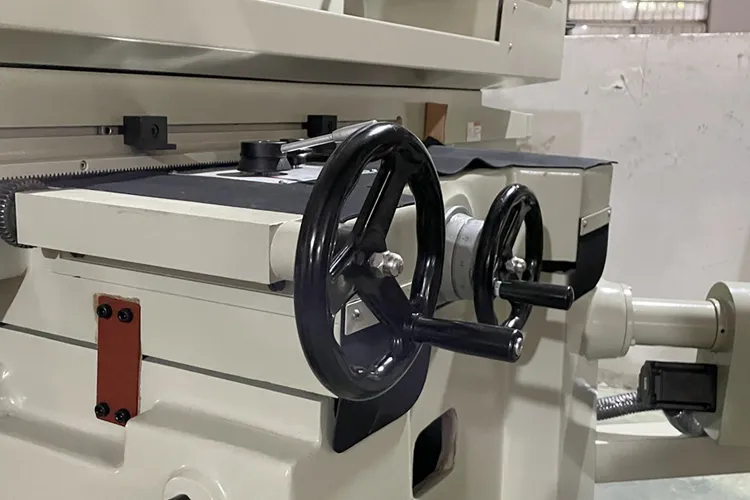

| Y axis hand wheel feed(1 grid/1 circle) | mm | 0.02/5 |
| Y axis automatic feed | mm | 0.1-8 |
| Y axis fast moving speed | mm/min | 990/1190 |
| Wheel size | mm | 350*40*127 |
| Wheel speed（50HZ/60HZ） | R.P.M | 1450/1740 |
| Z axis hand wheel feed (1 grid/1 circle) | mm | 0.005/1 |
| Z axis fast moving speed | mm/min | 230 |
| Spindle motor | HXP | 5*4 |
| Z axis motor | W | 750 |
| hydraulic motor | HXP | 2*6 |
| Cooling motor | W | 90 |
| Y axis motor | W | 80 |
| Machine dimensions | mm | 2000×1900×1800 |
| Weight | kg | ≈2200 |
Standard configuration

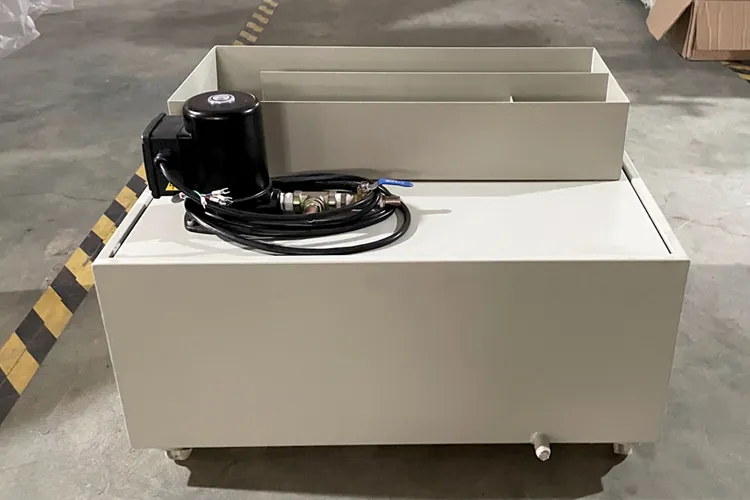

1. One set of cooling water tank
2. One set of flange/flange wrench
3. One electromagnetic sucker 300*600mm
4. Hydraulic system (excluding hydraulic oil) a set

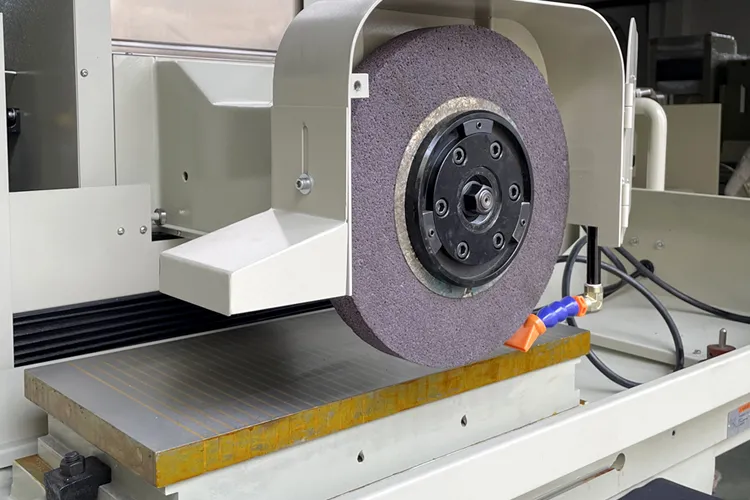

5. Ordinary grinding wheel 350*40*127mm (46#) one
6. A set of toolbox/standard tool/instruction manual
7. Grinding wheel removal screw/trimming pen holder/trimming pen set

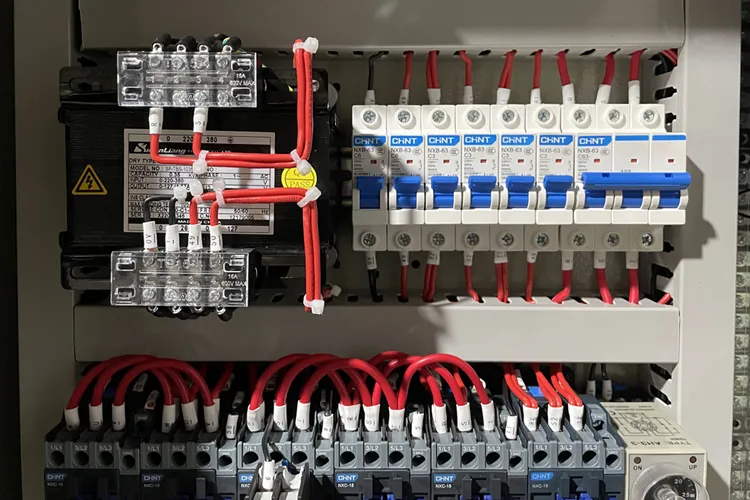

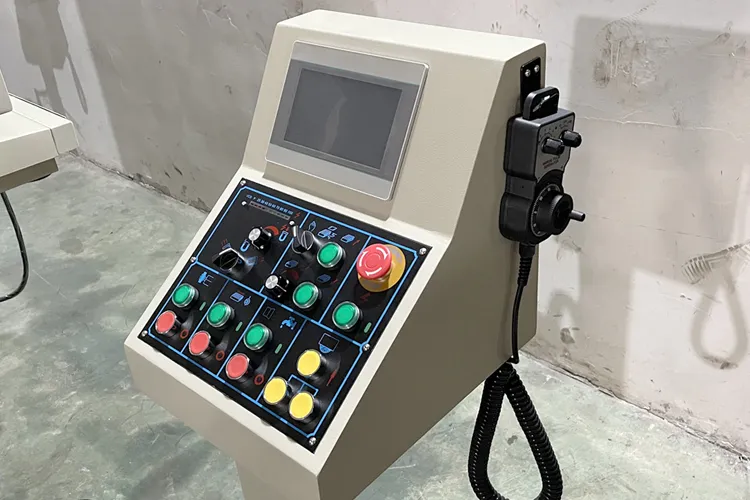

8. Automatic countdown configuration (installed on the device) includes: touch screen; programmable control PLC; servo motor and driver
9. One adjustable disk controller
10. Grinding wheel balance frame/balance bar set
11. A set of horizontal adjustment screws and foot pads
Why choose us
· The factory area exceeds 6000 square meters.
· The product models are complete, with a wide range of functions.
· More than 15 years of experience in design, research and development, and production of grinding machines.
· ISO9001:2015 quality management system certification.
· It has an efficient after-sales service team.
