Product details
Features：
Professional drill bit grinder. Grinding is accurate and quick, no special skills required;
Economical and practical, significant cost saving, improved use efficiency;
The grinder uses diamond grinding wheel with an accurate angle and long service life;
The machine is set up with the function of adjusting central point size, controls the quality and accuracy of the workpiece and extends the service life of the drill bit.

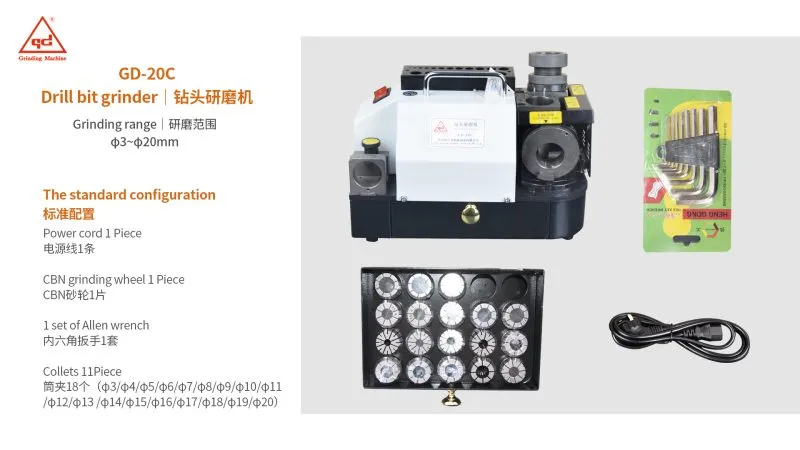

| Model | GD-20C |
| Grinding Range | Φ3-Φ20 |
| Point Angle | 90°~145° |
| Power | 220V |
| Motor | 300W |
| Speed | 4500rpm |
| Dimension | 375*225*275mm |
| Weight | 14.6kg |
| Standard Equipment | grinding wheel :CBN (for HSS)×1 |
| Eleven collets: Φ3,Φ4,Φ5,Φ6,Φ7,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15, Φ16,Φ17,Φ18,Φ19,Φ20 |
Why choose us
· The factory area exceeds 6000 square meters.
· The product models are complete, with a wide range of functions.
· More than 15 years of experience in design, research and development, and production of grinding machines.
· ISO9001:2015 quality management system certification.
· It has an efficient after-sales service team.
