Product details

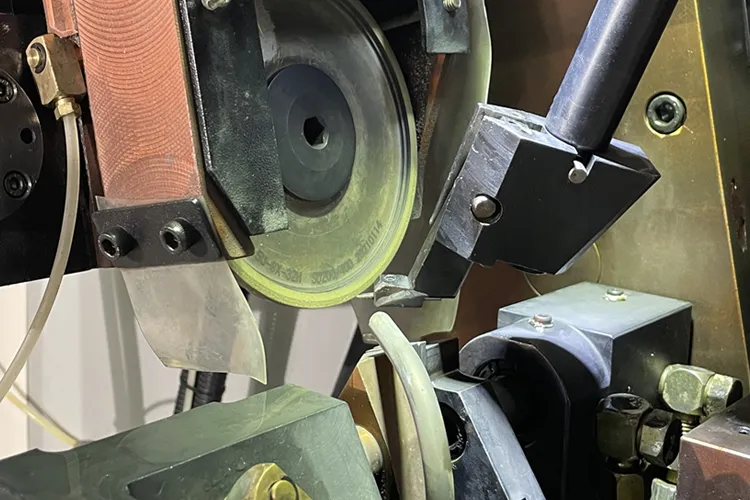

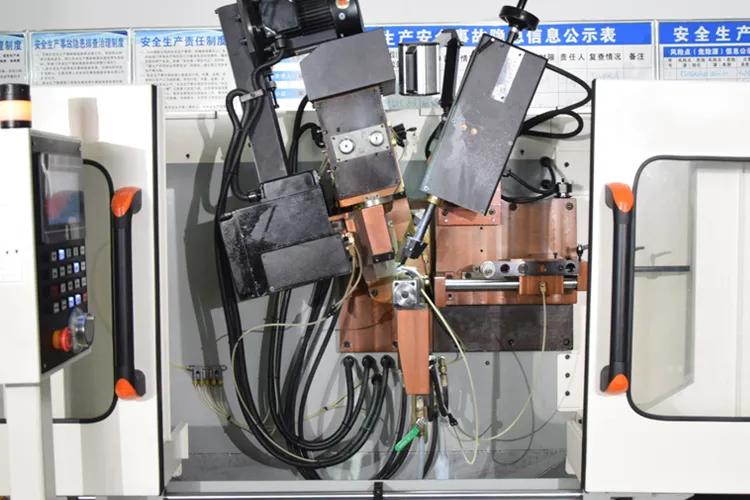

GD-200E Automatic Circular Saw Blade Sharpening Machine Adopt the control mode combining servo and hydraulic pressure,Servo feed, servo swing head, one-time forming of ladder flat teeth；Grinding precision <=0.03mm
GD-200E is an economical saw blade grinder, which can efficiently grind the tooth top and tooth surface of circular saw blades
| Model | GD-200E |
| Circular saw outside diameter | Ф120～Ф800mm |
| Bore hole diameter | Ф16～Ф120mm |
| Max blade thickness | 6mm |
| Tooth pitch | 7～60mm |
| Rake angle | -10°～+40° |
| Clearance angle | 6～45° |
| Bevel grinding top & face | Top 45°，Face 45° |
| Range of grinding cycle | Max 25mm(adjust)tooth/min |
| Grinding speed | 0.5～6mm/s |
| Feeding speed Max | 13 tooth/min |
| Grinding wheel outside dia. | Ф125mm |
| Grinding wheel linear speed | 28m/s |
| Hydraulic dial tooth (Direct dial) | |
| Spindle servo in-feed | |
| Capacity of coolant pump | 25L/min |
| Content of coolant pump | 80L |
| Total power | 2.8KW |
| Machine size | 1755×1650×1900 |
| Weight | 950kg |
Why choose us
· The factory area exceeds 6000 square meters.
· The product models are complete, with a wide range of functions.
· More than 15 years of experience in design, research and development, and production of grinding machines.
· ISO9001:2015 quality management system certification.
· It has an efficient after-sales service team.
