Product details

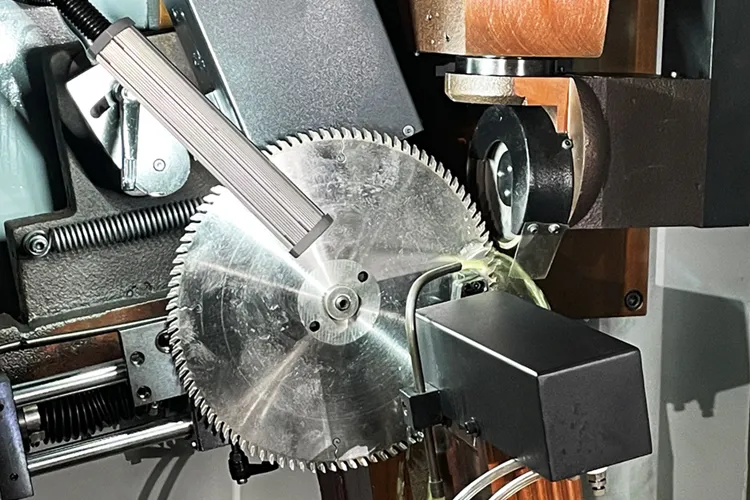

GD-100D CNC saw blade grinding machine adopts automatic service and automatic control, processing and grinding the tooth top and tooth surface of circular saw blade, easy to operate; servo feeding system, servo + worm gear swing head, servo tooth extraction; The radial adjustment of the saw blade after grinding is <=0.02mm; Imported spindle, long service life:
| Model | GD-100D |
| Circular Saw Outside Diameter | Ф120～Ф650mm |
| Bore Hole Diameter | Ф10～Ф120mm |
| Max Blade Thickness | 12mm |
| Tooth Pitch | 7～60mm |
| Rake Angle | -10°～+40° |
| Clearance Angle | 6～45° |
| Bevel Grinding Top & Face | Top 45°，face 45° |
| Range Of Grinding Cycle | Max 25mm(adjust)tooth/min |
| Grinding Speed | 0.5～6mm/s |
| Feeding Speed Max | 13 Tooth/min |
| Grinding Wheel Outside Dia. | Ф125mm |
| Grinding Wheel Linear Speed | 28m/s |
| Hydraulic Dial Tooth (direct Dial) | |
| Servo Speed/serrvo Adjustment Angle Of Worm Gear | |
| Capacity Of Coolant Pump | 25l/min |
| Content Of Coolant Pump | 100l |
| Total Power | 3.5kw |
| Equipment Size | 1645×1500×1855 |
| Package Size | 1780×1790×2070 |
| Weight About | 1150kg |
Why choose us
· The factory area exceeds 6000 square meters.
· The product models are complete, with a wide range of functions.
· More than 15 years of experience in design, research and development, and production of grinding machines.
· ISO9001:2015 quality management system certification.
· It has an efficient after-sales service team.
